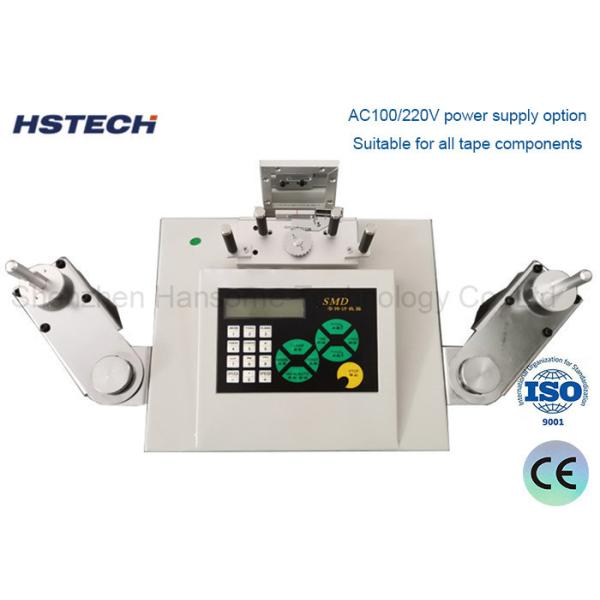

SMD Components Counter:
New automatic SMT part counter leakage detection element counter machine,Automatic detection of leakage of SMD part counter's part counter.
1, can be used with the strip machine, easy to operate.
2. The motor is imported from Japan, which can protect itself when overloaded.
3. The rotating part of the gear adopts ball bearing structure, stable operation and long service life.
4. Set the lack of material protection device.
5. Automatic counting of parts makes inventory work easier.
6. Equipped with liquid crystal display, easy to read data.
7, with leakage detection function.
The application:
1. All straps are made of SMD material
2. Expected belt pulley diameter: All sizes are applicable
3. Belt clearance :2, 4, 8, 10, 12, 16, 24, 32, 44, 56mm, cycle adjustment
4. Belt width (bag):8, 12, 16, 24, 32, 44, 56 mm
Features:
1. Preset the number of parts function, SMT material belt parts design.
2, with leakage detection function and leakage alarm function
3. With forward and backward counting function, accurately calculate the number of zero error
4, can be matched with scanning gun and barcode printer, convenient management work (gun and printer need to be purchased separately, this price is only available at the counter)
5. Adjustable speed, with preset speed function.
6, simple operation, small volume, easy to carry
7, durable and reliable
Main component:
Manipulator or robotic arm: used to automatically grab and place PCB sheets.
Visual positioning system: including cameras, image processing algorithms, etc.
Tray switching mechanism: can automatically switch sheets in different trays.
Transmission mechanism: such as conveyor belts, rollers, etc., used for sheet material transportation.
Program control system: PLC or industrial computer to achieve fully automated control.
Safety protection devices: such as grating sensors, emergency stop switches, etc.
